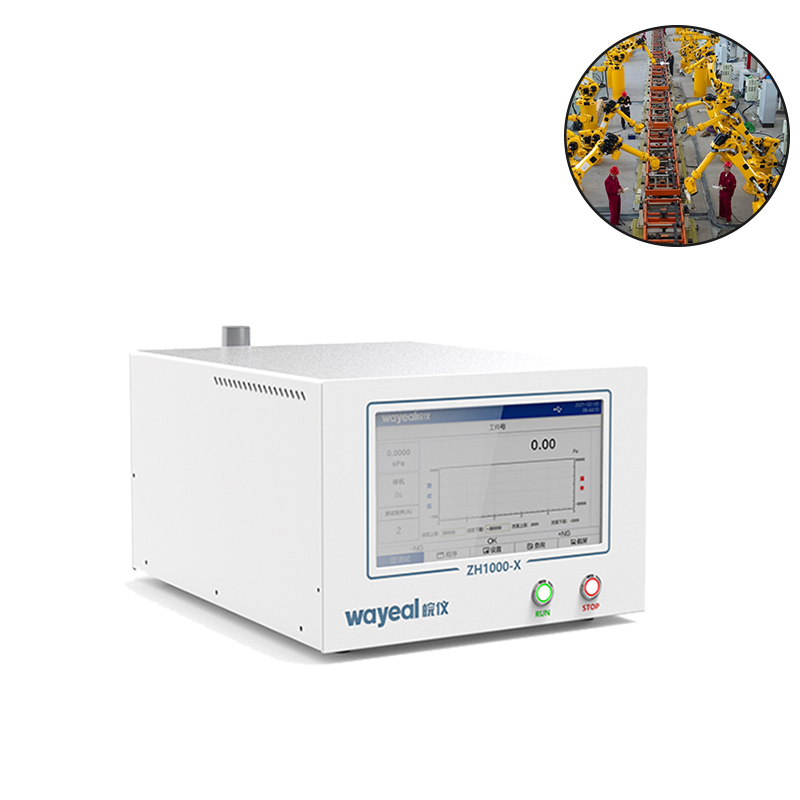

Multi Station Air Tightness Helium Leak Detector For Direct Pressure Leak Detetcion

Brand Name : Wayeal

Model Number : Standard V6

Certification : ISO90001, CE

Place of Origin : Anhui, China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Pieces Per Month

Delivery Time : 15 Days

Packaging Details : 1 Piece Per Wooden Case

Product Name : Differential Pressure Helium Leak Detector

Working Power : AC220V, 50Hz

Test Beat Setting : 0 ~ 999 seconds, test time 1800 seconds

Leakage Rate : Pa、kPa、Pa/s、Pa.m3/s、mL/s、mL/min、mL/h. L ./min. L /h. SCCM

Weight : 20KGS

Diamension : 321mmx205mmx460mm

Contact Now

Multi-station Air Tightness Helium Leak Detector For Direct Pressure Leak Detetcion

Product Description

The Helium Mass Spectrometer Leak Detection System is used to identify both large (gross) and small leaks in a product. The system pressurizes a product with dry air and then completes a gross leak check to determine if a large leak exists.

Product Parameters

Multi-station Air Tightness Helium Leak Detector For Direct Pressure Leak Detetcion
Main Models Parameters
Differential Pressure Sensor Display Precision The value can be set to 0 to 4 decimal places
Sensor Range 0Pa~ +2000Pa
Sensor Error +0.1%F.S
Display Precision The value can be set to 0 to 4 decimal places
Direct Pressure Sensor Recommended Test Pressure Range VH90B

Mechanical

Pressure Regulating

-100kPa~ -1kPa
CH050

Mechanical

Pressure Regulating

5kPa~ 100kPa
CH600 Electronic
Pressure Regulation		 5kPa~ 89kPa
CH600D Electronic
Pressure Regulation		 5kPa~ 490kPa
CH1000 Mechanical
Pressure Regulating		 50kPa~ 1200kPa
CH1000D Electronic
Pressure Regulation		 50kPa~ 890kPa
CH4000 Mechanical Pressure Regulating 50kPa~4000kPa
CH500 Mechanical
Pressure Regulating		 10kPa~500kPa (seals leak detector)
ZF500 Mechanical
Pressure Regulating		 -100kPa~-1kPa,10kPa~500kPa
ZF2500 Mechanical
Pressure Regulating		 -100kPa~-1kPa,50kPa~2400kPa
ZF600 Mechanical
Pressure Regulating		 -100kPa～-1kPa,10kPa～600kPa(Optional)
ZF2400 Mechanical
Pressure Regulating		 -100kPa～-1kPa,50kPa～2400kPa(Optional)
Sensor Error +0.1%F.S.
Display Unit Test Pressure kPa,MPa,kg/cm2,psi,mbar. bar,Torr. mmH,0,mmHg
Leakage Rate Pa,kPa,Pa/s,Pa.m3/s,mL/s,mL/min,mL/h. L ./min. L /h. SCCM
Parameter Program Number 64 groups (1~64)
Test Beat Setting 0 ~ 999 seconds, test time 1800 seconds
Power Supply AC 220V+10%,50Hz
Test Pressure Source Clean, dry, adequate flow, not less than 500KPa and 100KPa above the test pressure source
Overall Dimensions Standard V5 330mmx222mmx448mm
Standard V6 321mmx205mmx460mm
Modular 160mmx268mmx273mm
Weight About 20kgs

Product Performance

1. Modular Integrated design
2. Fully automatic process
3. Adjustable parameters
4. Fault indicators
5. Remote monitoring
6. Compressor monitoring

Product Application

It is widely used in production line industries such as refrigeration and air conditioning, automotive parts, carbonated beverage containers food packages and aerosol packaging, as well as in the manufacture of steam products, gas bottles, fire extinguishers, tire valves, and numerous other products including all vacuum systems.
